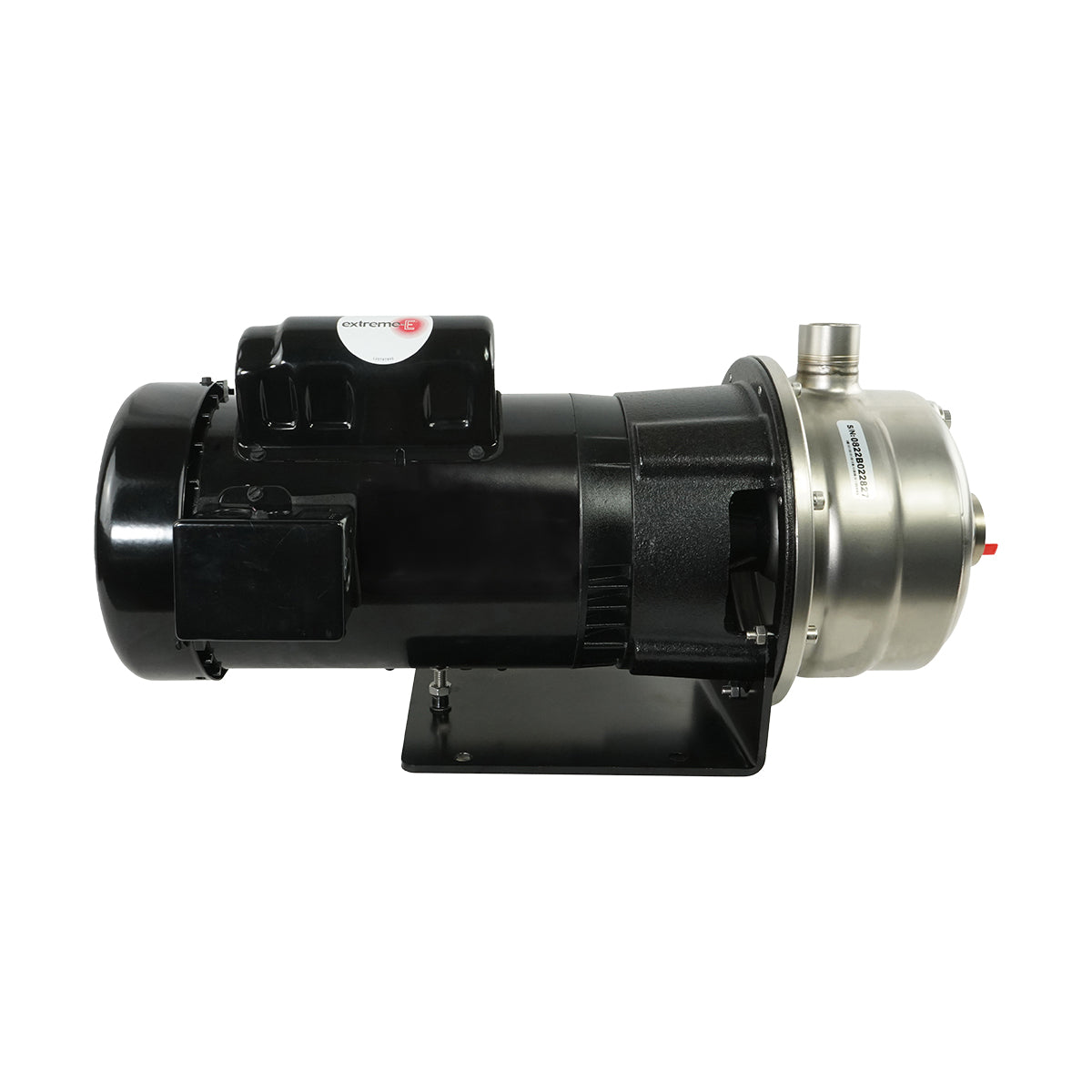

2TCN12030MT Horizontal Pump, 3HP, SS

Initial Setup: Inspect the unit for shipping damage and ensure all components are included. Verify motor voltage compatibility with the power supply. Check alignment between the motor and pump before mounting.
Mounting Surface: Install the pump on a stable, flat surface free from vibration. If needed, use anchor bolts for secure positioning.
Piping: Connect suction and discharge piping using proper seals and gaskets. Ensure the suction line is airtight and properly supported to avoid stress on the pump. Install check and isolation valves on the discharge line.
Priming: Fill the pump casing with liquid prior to startup. Use the vent valve to purge air from the casing.
Electrical Setup: Wire the motor according to local code and manufacturer instructions. Confirm the motor is securely grounded. Ensure correct rotation as marked on the pump body.
Start-Up Procedure: Open suction and discharge valves fully. Start the motor and monitor operation closely. Listen and check for vibrations, leaks, or unusual noises.
Final Tuning: Regulate flow and pressure via the discharge valve as needed. Avoid restricting flow on the suction side to maintain pump efficiency.
Ongoing Maintenance: Conduct routine checks for wear, leaks, and proper function. Lubricate bearings as instructed by the manufacturer.

Name: 2TCN12030MT Horizontal Pump, 3HP, SS
Brand: Scientific World Products
SKU: CQE-PM-89004
Availability: InStock

In stock

SKU: CQE-PM-89004
